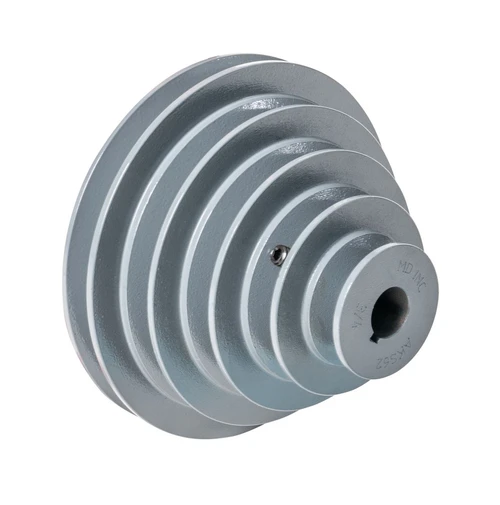

Masterdrive Part Number: AKS63-5/8
Belt Series: 3L, 4L, A
Pulley Style: 2
Order part number size + bore: Example: AKS42-1/24
PRODUCT HIGHLIGHTS
Belt Series: 3L, 4L, A
Pulley Style: 2
Order part number size + bore: Example: AKS42-1/24
PRODUCT HIGHLIGHTS
- Light duty
- Accurately machined from gray cast iron
- Statically balanced, painted and individually packaged
- Furnished with standard keyway & 2 set screws
- All set screws are 5/16-18 knurled
- Recommended tightening torque of 110-130 in-lbs
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Number Of Ribs:
- 4
- Type:
- 2
- Series:
- 3L,4L,A
- Inside Diameter:
- 5/8 Inch
- Material:
- Cast Iron
- Outside Diameter:
- 6 Inch
- Width:
- 3 Inch Face
