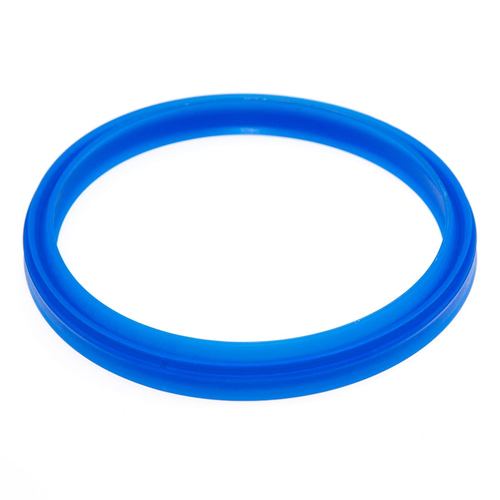

Catalog Number: T-75053870

OEM Number: ADM55-18X30X6

PRODUCT TYPE: Double Wiper

Seal Profile: ADM55

Lip/Base Material: 95 AU

PRODUCT SPECIFICATIONS

Series: ADM55
Inside Diameter: 0.709 Inch
Outside Diameter: 1.181 Inch
Material: 95 AU

DESIGN SPECIFICATIONS

Double-acting
Slightly rounded sealing edge
Protruding wiper lip
Metal angle ring
Material: NBR, FKM, TPU

FUNCTION

Wiping off impurities on the piston rod during the retraction movement
Reduction of residual oil film due to second lip<
Metal angle ring ensures good fit in the installation space and prevents twisting
Pressure relief hole recommended for return of residual oil

PRODUCT ADVANTAGES

Good wiping properties against dirt
High wear resistance
Long service life
Axially open, easy-to-fabricate installation space
Reliable design with broad application spectrum for moderately demanding applications in general industry

COMMON APPLICATIONS

Mobile hydraulics
Particularly suitable for applications with heavy contamination

APPLICATION LIMITS
The values given here are maximum values and may not all be reached at the same time
TPU

Temperature [°C]: -30 to 100
Gliding speed [m/s]: max. 1

MEDIA RESISTANCE
TPU

Hydraulic oils according to DIN 51524 part 1-3
Lubricating oils
Lubricating greases based on minor oils
Flame-retardant hydraulic fluids HFA, HFB, HFC according to VCMA 24317

STORAGE ADVISE

Storage temperature <25°C
No direct heat sources
No direct sunlight
No condensation in the storage room
No exposure to ozone or ionizing radiation
Recommendations based on the revision of ISO 2230 dated 16.09.1992

Wipers are wear-resistant, long-lasting and keep dust and dirt particles from entering housings. They shield the hydraulic fluid from contaminants in addition to preventing harm to the sealing system. Double-acting wipers also leave behind an extra layer of leftover oil. For high exterior pollution, wipers with metal housings are especially well-suited because of their press-fit design. Numerous wipers that are compatible with a wide range of hydraulic cylinders are available under the TCM product brand. Maxtran. com is the trusted authorized source for TCM Hydraulic Seals Easily shop the largest inventory of TCM ADM55 Double Wiper Hydraulic Seals you need at the best deals with free shipping and our 30-day moneyback warranty. Our Double Wiper Seals measure 0. 709 Inch inside shaft diameter by 1. 181 Inch outside bore diameter and are produced from 95 AU rubber that have excellent resistance to hydraulic fluids, oils, lubricants, and greases
