CR Seals (SKF) 45X75X8 HMS5 V Single Lip Oil Seal, 45MM Shaft Diameter, HMS5-V Design, Fluoro rubber (FKM) Material

Chicago Rawhide Part Number: 45X75X8 HMS5 V

SKF Part Number: 45X75X8 HMS5 V

Design Series: HMS5-V

45X75X8 HMS5 V, SKF, Radial shaft seal with rubber outside diameter and single sealing lipSKF metric rubber-outside radial shaft seals, also called edge seals. HMS Series

Oil or grease radial shaft seal with single sealing lip and rubber outside diameter. Rotating and stationary machine parts, as well as parts moving relative to one another, are sealed by radial shafts. Rubber is used in the construction of HMS5 seals. To sustain the proper radial load, they contain a garter spring and a standard elastomer sealing lip.

PRODUCT HIGHLIGHTS

• High fluid pumping rate
• With garter spring
• Accommodate misalignmen
• Easy installation
• Rubber outer diameter maximizes the sealing capacity of the housing
• Better sealing and retention in the bore are provided by the beads on the outside diameter

HMS5 and HMSA10 seals

As part of the CR Seals collection, SKF metric rubber outer diameter radial shaft seals, HMS5 and HMSA10, commonly known as SKF Edge seals, are made in compliance with ISO 6194-1 and DIN 3760 for use in a variety of industrial applications. For shaft diameters up to 250 mm (9.842 in.), the size range of HMS5 and HMSA10 seals that are offered fully covers the DIN 3760 and ISO 6194-1 dimensions in addition to a wide range of dimensions that are often used in the market. They keep adding new aspects.

Key characteristics include

• Material for sealing lips that is optimized
• Sealing lip that is spring-loaded
• Ideally balanced flex section and sealing lip
• Outside diameter is beaded
• Auxiliary lip (only for HMSA10 seals)APPLICATIONS

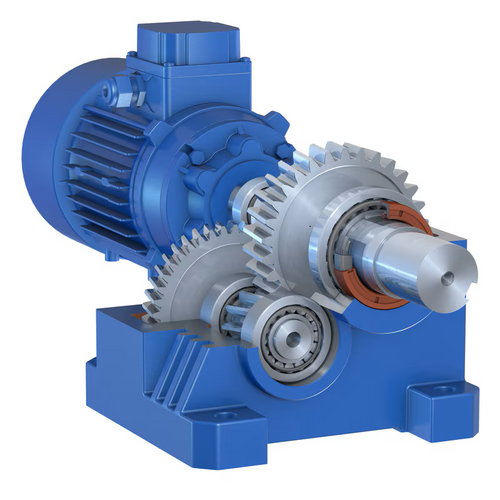

  • Gearboxes
  • Hydraulic pumps
  • Axles
  • Power steering columns
  • Speed reducers
  • Transmissions

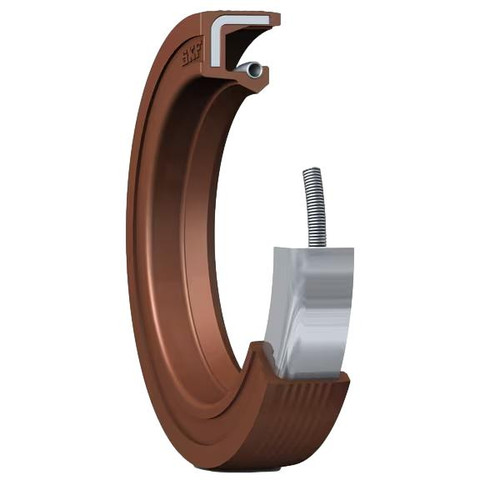

  Radial shaft seals are positioned between two components that are moving relative to one another or between fixed and rotating components. They are divided into two major sections. One is a cylindrical outer covering that fits into the housing bore statically and has an interference fit. The second is a sealing lip that seals against the shaft both statically and dynamically. With a predetermined radial load, its sealing edge presses up against the shaft's counterface surface. There are numerous uses for Maxtran's radial shaft seals. Both SKF and users are significantly interested in standardizing due to the significance of radial shaft seals for machine operational dependability and service life. For the widest selection of oil seal sizes and materials, you can rely on Maxtran.

  This 45X75X8 HMS5 V, SKF, Radial shaft seal with rubber outside diameter rotary seal and single sealing lipSKF metric rubber-outside radial shaft seals, also called edge seals. HMS Series oil seal sold by Maxtran is manufactured by Chicago Rawhide, an SKF company from high quality materials. This SKF Radial shaft seal has a Fluoro rubber (FKM) Single lip and is designed with a HMS5-V lip profile. This 45X75X8 HMS5 V oil seal can be used where fitament requires a 45MM shaft and 75MM outside diameter rotary seal needing a 8MM overall seal thickness.
