CR Seals (SKF) 24917 Double Lip Oil Seal, 2.5 Inch Shaft Diameter, HMSA16 Design, Nitrile rubber (NBR) Material

Chicago Rawhide Part Number: 24917

SKF Part Number: 24917

Design Series: HMSA16

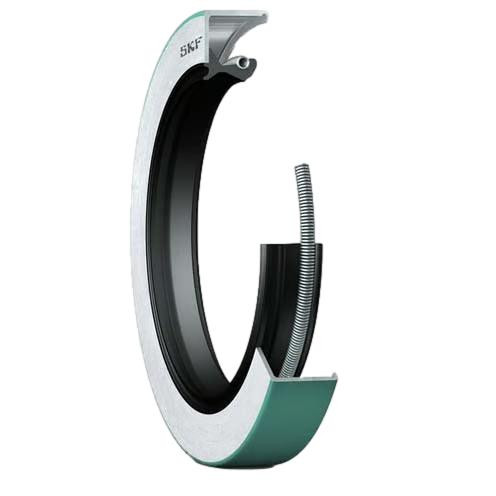

24917, SKF, Radial shaft seal with metal case and double sealing lip

Oil or grease radial shaft seal with metal casing and double sealing lip. Radial shaft seals are employed between parts of a machine that are in relative motion or between parts that are rotating and stationary. The seals are made to fit the housing bore and have an outer layer of steel or elastomer. For optimal sealing against the rotating shaft, the sealing lip is composed of elastomer. To maximize the sealing against the shaft, a garter spring is incorporated within the seal.

PRODUCT HIGHLIGHTS

• High pumping rate
• Higher contamination exclusion with dust lip
• With garter spring
• Accommodate misalignment
• Optimized sealing ability in the housing considerable surface roughness or in split housings
• Beads on the outside diameter provide improved sealing ability and retention in the bore

HMS5 and HMSA10 seals

As part of the CR Seals collection, SKF metric rubber outer diameter radial shaft seals, HMS5 and HMSA10, commonly known as SKF Edge seals, are made in compliance with ISO 6194-1 and DIN 3760 for use in a variety of industrial applications. For shaft diameters up to 250 mm (9.842 in.), the size range of HMS5 and HMSA10 seals that are offered fully covers the DIN 3760 and ISO 6194-1 dimensions in addition to a wide range of dimensions that are often used in the market. They keep adding new aspects.

Key characteristics include

• Material for sealing lips that is optimized
• Sealing lip that is spring-loaded
• Ideally balanced flex section and sealing lip
• Outside diameter is beaded
• Auxiliary lip (only for HMSA10 seals)APPLICATIONS

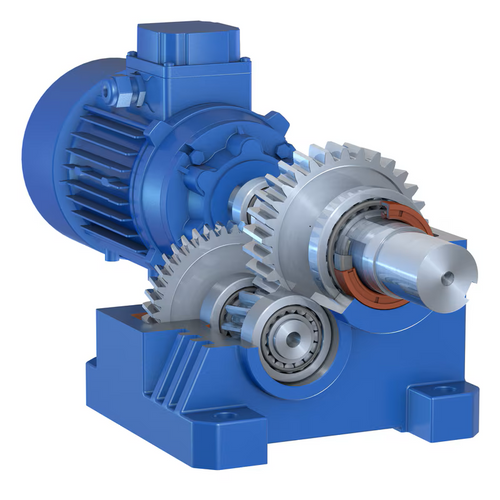

  • Gearboxes
  • Hydraulic pumps
  • Axles
  • Power steering columns
  • Speed reducers
  • Transmissions
  Radial shaft seals are positioned between two components that are moving relative to one another or between fixed and rotating components. They are divided into two major sections. One is a cylindrical outer covering that fits into the housing bore statically and has an interference fit. The second is a sealing lip that seals against the shaft both statically and dynamically. With a predetermined radial load, its sealing edge presses up against the shaft's counterface surface. There are numerous uses for Maxtran's radial shaft seals. Both SKF and users are significantly interested in standardizing due to the significance of radial shaft seals for machine operational dependability and service life. For the widest selection of oil seal sizes and materials, you can rely on Maxtran.

  This 24917, SKF, Radial shaft seal with metal case and double sealing lip oil seal sold by Maxtran is manufactured by Chicago Rawhide, an SKF company from high quality materials. This SKF Radial shaft seal has a Nitrile rubber (NBR) Double lip and is designed with a HMSA16 lip profile. This 24917 oil seal can be used where fitament requires a 2.5 Inch shaft and 3.301 Inch outside diameter rotary seal needing a 0.453 Inch overall seal thickness.
