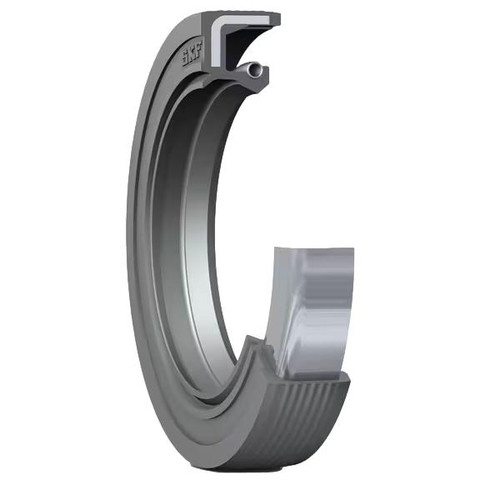

CR Seals (SKF) 240X270X15 HMSA10RG Double Lip Oil Seal, 240MM Shaft Diameter, HMSA10RG Design, Nitrile rubber (NBR) Material

Chicago Rawhide Part Number: 240X270X15 HMSA10RG

SKF Part Number: 240X270X15 HMSA10RG

Design Series: HMSA10RG

240X270X15 HMSA10RG, SKF, Radial shaft sealSKF metric rubber-outer radial shaft seals, also called edge seal HMSA10 Series

Rubber-encased radial shaft seal for oil or grease that has a single sealing lip. Between moving and stationary machine parts or between parts in relative motion, radial shaft seals are employed. Rubber has been used in the design of HMSA10 seals. They have an elastomer-based traditional sealing lip. A non-contacting auxiliary lip and a garter spring in the seal maximize the sealing against the shaft even in a contaminated environment.

PRODUCT HIGHLIGHTS

• High pumping rate
• Higher contamination exclusion with dust lip
• With garter spring
• Accommodate misalignment
• Optimized sealing ability in the housing considerable surface roughness or in split housings
• Beads on the outside diameter provide improved sealing ability and retention in the bore

HMS5 and HMSA10 seals

As part of the CR Seals collection, SKF metric rubber outer diameter radial shaft seals, HMS5 and HMSA10, commonly known as SKF Edge seals, are made in compliance with ISO 6194-1 and DIN 3760 for use in a variety of industrial applications. For shaft diameters up to 250 mm (9.842 in.), the size range of HMS5 and HMSA10 seals that are offered fully covers the DIN 3760 and ISO 6194-1 dimensions in addition to a wide range of dimensions that are often used in the market. They keep adding new aspects.

Key characteristics include

• Material for sealing lips that is optimized
• Sealing lip that is spring-loaded
• Ideally balanced flex section and sealing lip
• Outside diameter is beaded
• Auxiliary lip (only for HMSA10 seals)APPLICATIONS
  • Gearboxes
  • Hydraulic pumps
  • Axles
  • Power steering columns
  • Speed reducers
  • Transmissions
  Radial shaft seals are positioned between two components that are moving relative to one another or between fixed and rotating components. They are divided into two major sections. One is a cylindrical outer covering that fits into the housing bore statically and has an interference fit. The second is a sealing lip that seals against the shaft both statically and dynamically. With a predetermined radial load, its sealing edge presses up against the shaft's counterface surface. There are numerous uses for Maxtran's radial shaft seals. Both SKF and users are significantly interested in standardizing due to the significance of radial shaft seals for machine operational dependability and service life. For the widest selection of oil seal sizes and materials, you can rely on Maxtran.

  This 240X270X15 HMSA10RG, SKF, Radial shaft sealSKF metric rubber-outer radial shaft seals, also called edge seal HMSA10 Series oil seal sold by Maxtran is manufactured by Chicago Rawhide, an SKF company from high quality materials. This SKF Radial shaft seal has a Nitrile rubber (NBR) Double lip and is designed with a HMSA10RG lip profile. This 240X270X15 HMSA10RG oil seal can be used where fitament requires a 240MM shaft and 270MM outside diameter rotary seal needing a 15MM overall seal thickness.
