CR Seals (SKF) 15X24X7 HMS5 RG1 Single Lip Oil Seal, 15MM Shaft Diameter, HMS5-RG1 Design, Nitrile rubber (NBR) Material

Chicago Rawhide Part Number: 15X24X7 HMS5 RG1

SKF Part Number: 15X24X7 HMS5 RG1

Design Series: HMS5-RG1

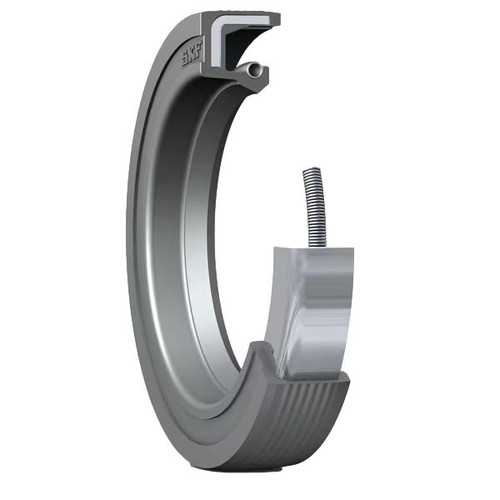

15X24X7 HMS5 RG1, SKF, Radial shaft seal with rubber outside diameter and single sealing lipHMS5 housing

Radial shaft seal for oil or grease that has a single sealing lip and a rubber outside diameter. Radial shaft seals are used between parts of a machine that are in relative motion or between parts that are rotating and stationary. The exterior diameter of HMS5 seals are constructed of rubber. To maintain the proper radial stress, they feature a garter spring and a traditional sealing lip composed of elastomer.

PRODUCT HIGHLIGHTS

• High fluid pumping rate
• With garter spring
• Accommodate misalignmen
• Easy installation
• Rubber outer diameter maximizes the sealing capacity of the housing
• Better sealing and retention in the bore are provided by the beads on the outside diameter

HMS5 and HMSA10 seals

As part of the CR Seals collection, SKF metric rubber outer diameter radial shaft seals, HMS5 and HMSA10, commonly known as SKF Edge seals, are made in compliance with ISO 6194-1 and DIN 3760 for use in a variety of industrial applications. For shaft diameters up to 250 mm (9.842 in.), the size range of HMS5 and HMSA10 seals that are offered fully covers the DIN 3760 and ISO 6194-1 dimensions in addition to a wide range of dimensions that are often used in the market. They keep adding new aspects.

Key characteristics include

• Material for sealing lips that is optimized
• Sealing lip that is spring-loaded
• Ideally balanced flex section and sealing lip
• Outside diameter is beaded
• Auxiliary lip (only for HMSA10 seals)APPLICATIONS
  • Gearboxes
  • Hydraulic pumps
  • Axles
  • Power steering columns
  • Speed reducers
  • Transmissions
  Radial shaft seals are positioned between two components that are moving relative to one another or between fixed and rotating components. They are divided into two major sections. One is a cylindrical outer covering that fits into the housing bore statically and has an interference fit. The second is a sealing lip that seals against the shaft both statically and dynamically. With a predetermined radial load, its sealing edge presses up against the shaft's counterface surface. There are numerous uses for Maxtran's radial shaft seals. Both SKF and users are significantly interested in standardizing due to the significance of radial shaft seals for machine operational dependability and service life. For the widest selection of oil seal sizes and materials, you can rely on Maxtran.

  This 15X24X7 HMS5 RG1, SKF, Radial shaft seal with rubber outside diameter rotary seal and single sealing lipHMS5 housing oil seal sold by Maxtran is manufactured by Chicago Rawhide, an SKF company from high quality materials. This SKF Radial shaft seal has a Nitrile rubber (NBR) Single lip and is designed with a HMS5-RG1 lip profile. This 15X24X7 HMS5 RG1 oil seal can be used where fitament requires a 15MM shaft and 24MM outside diameter rotary seal needing a 7MM overall seal thickness.
