Chicago Rawhide Part Number: 100X130 MUD11 R
SKF Part Number: 100X130 MUD11 R
Design Series: MUD11-R

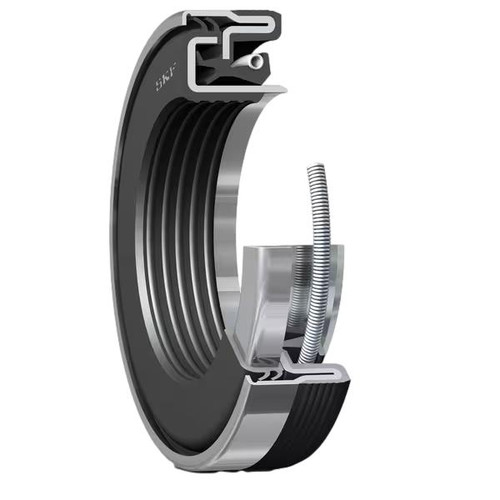

100X130 MUD11 R, SKF, Cassette seal for oil-lubricated heavy-duty applicationsSKF Cassette seal (mud11r)
Cassette seal for heavy-duty, oil-lubricated applications. A new generation of cassette seals called the SKF Mudblock was created especially for oil-lubricated off-highway applications that operate in challenging operational circumstances and severe environments. The design has been tuned to offer optimal protection against liquid or solid impurities and excellent grease or oil retention.
PRODUCT HIGHLIGHTS
SKF Mudblock cassette seals have been designed to offer superior oil or grease retention as well as the highest level of protection against liquid or solid impurities. The seals are custom-made to fulfill the requirements of every unique application. A new generation of cassette seals, the SKF Mudblock seal design MUD11 was created especially for heavy-duty applications lubricated with oil and grease under challenging working circumstances and severe environments.
Key characteristics include
This 100X130 MUD11 R, SKF, Cassette seal for oil-lubricated heavy-duty applicationsSKF Cassette seal (mud11r) oil seal sold by Maxtran is manufactured by Chicago Rawhide, an SKF company from high quality materials. This SKF Radial shaft seal has a Nitrile rubber (NBR) Multi lip and is designed with a MUD11-R lip profile. This 100X130 MUD11 R oil seal can be used where fitament requires a 100MM shaft and 130MM outside diameter rotary seal needing a 15.5MM overall seal thickness.
SKF Part Number: 100X130 MUD11 R
Design Series: MUD11-R
100X130 MUD11 R, SKF, Cassette seal for oil-lubricated heavy-duty applicationsSKF Cassette seal (mud11r)
Cassette seal for heavy-duty, oil-lubricated applications. A new generation of cassette seals called the SKF Mudblock was created especially for oil-lubricated off-highway applications that operate in challenging operational circumstances and severe environments. The design has been tuned to offer optimal protection against liquid or solid impurities and excellent grease or oil retention.
PRODUCT HIGHLIGHTS
- Multi-lip design
- Maximum protection against liquid or solid contamination
- Oil and grease retention
- Reduced friction
- Extended wheel-end service life
SKF Mudblock cassette seals have been designed to offer superior oil or grease retention as well as the highest level of protection against liquid or solid impurities. The seals are custom-made to fulfill the requirements of every unique application. A new generation of cassette seals, the SKF Mudblock seal design MUD11 was created especially for heavy-duty applications lubricated with oil and grease under challenging working circumstances and severe environments.
Key characteristics include
- Half-metal/half-rubber outside diameter improves static sealing, heat dissipation and retention in housing
- A unitized, multi-lip seal design
- Axial and auxiliary radial lips for contaminant exclusion Integrated wear sleeve
- Curle for a reliable unitized solution to facilitate installation and prevent damage to the lips during transportation, handling and installation
- High-performance elastomeric materials
- Market-leading performance in terms of oil retention
- Robust protection from solid and liquid contaminants while reducing friction and extending seal service life

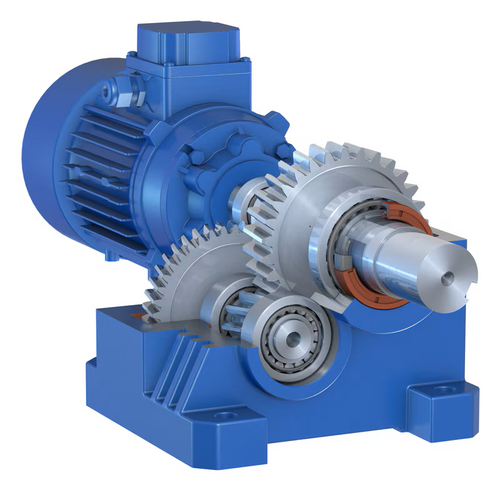

- Gearboxes
- Hydraulic pumps
- Axles
- Power steering columns
- Speed reducers
- Transmissions
This 100X130 MUD11 R, SKF, Cassette seal for oil-lubricated heavy-duty applicationsSKF Cassette seal (mud11r) oil seal sold by Maxtran is manufactured by Chicago Rawhide, an SKF company from high quality materials. This SKF Radial shaft seal has a Nitrile rubber (NBR) Multi lip and is designed with a MUD11-R lip profile. This 100X130 MUD11 R oil seal can be used where fitament requires a 100MM shaft and 130MM outside diameter rotary seal needing a 15.5MM overall seal thickness.
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- CR (SKF)
- Type:
- Multi Lip
- Material:
- Nitrile Rubber (NBR)
- Inside Diameter:
- 100MM
- Outside Diameter:
- 130MM
- Width:
- 15.5MM
- Series:
- MUD11-R
