Catalog Number: T-67188648
OEM Number: MA24-60X72X8.5

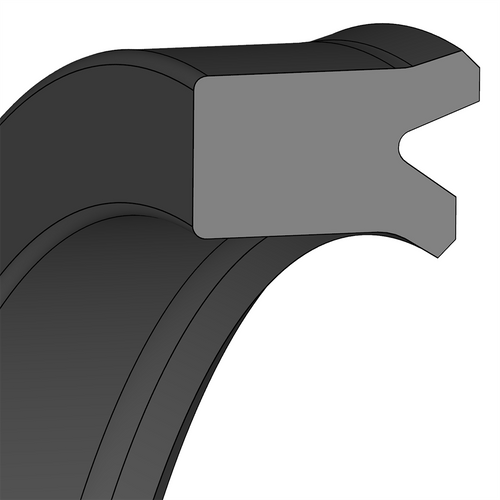

PRODUCT TYPE: U-Cup Rod Seal
Seal Profile: SNI24
Lip/Base Material: 90 Nitrile
PRODUCT SPECIFICATIONS
The values given here are maximum values and may not all be reached at the same time
NBR
TPU
OEM Number: MA24-60X72X8.5
PRODUCT TYPE: U-Cup Rod Seal
Seal Profile: SNI24
Lip/Base Material: 90 Nitrile
PRODUCT SPECIFICATIONS
- Series: SNI24
- Inside Diameter: 2.362 Inch
- Outside Diameter: 2.835 Inch
- Material: 90 Nitrile
- Asymmetrical
- Single acting
- Shortened inner lip
- Rrecessed sealing lip
- Tight fit on the outer diameter
- Sealing material: NBR
- Sealing of piston rods
- Use with one-sided pressure load
- Pressure build-up increases sealing effect
- Good static and dynamic sealing effect
- Simple snap-on assembly
- Reliable design with broad application spectrum for moderately demanding applications in general industry
- Good price/performance ratio
- Manufactured by certified external suppliers
- Gearboxes
- Bearing pedestal seal
The values given here are maximum values and may not all be reached at the same time
NBR
- Temperature [°C]: -30 to 100
- Gliding speed [m/s]: max. 0.5
- Pressure [Mpa]: max. 16
TPU
- Hydraulic oils according to DIN 51524 part 1-3
- Lubricating oils
- Lubricating greases based on minor oils
- Flame-retardant hydraulic fluids HFA, HFB, HFC according to VCMA 24317
- Storage temperature <25°C
- No direct heat sources
- No direct sunlight
- No condensation in the storage room
- No exposure to ozone or ionizing radiation
- Recommendations based on the revision of ISO 2230 dated 16.09.1992
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Type:
- U-Cup Rod Seal
- Series:
- SNI24
- Inside Diameter:
- 2.362 Inch
- Outside Diameter:
- 2.835 Inch
- Material:
- 90 Nitrile
