Catalog Number: T75018968

OEM Number: 901057SA-H

Industry Part Number: 901057SA-H

PRODUCT TYPE: Radial Shaft Seal

Seal Profile: WC

Lip/Base Material: 70 Nitrile Black

Commodity Code: 8487900080

Country of Origin: Taiwan

PRODUCT SPECIFICATIONS

Series: WC
Type: Single Lip
Inside Diameter: 9 Inch
Outside Diameter: 10.5 Inch
Width: 0.75 Inch
Material: 70 Nitrile Black

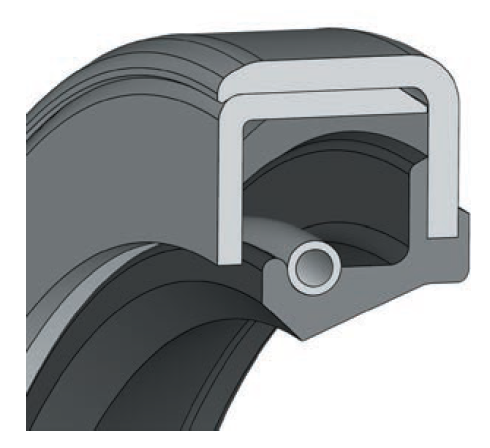

DESIGN SPECIFICATIONS

With tension spring
Without protective lip
Closed, metallic outer casing with stiffening plate
Sealing material: NBR, FKM
Material stiffening plate: Unalloyed steel DIN EN
10139 (DIN 1624)
Spring material: Spring steel DIN EN 10270-1

FUNCTION

Dynamic sealing of rotating shafts, independent of direction of rotation
Good static seal between sealing lip and shaft at standstill
Metallic outer jacket ensures tight and precise fit
Stiffening plate ensures increased rigidity
Limited sealing of low-viscosity and gaseous media and in split housings

PRODUCT ADVANTAGES

Suitable for difficult installation conditions or for larger diameters
Tight and precise fit
Long service life
Reliable design with broad application spectrum for moderately demanding applications in general industry
Good price/performance ratio
Manufactured by certified external suppliers

COMMON APPLICATIONS

Heavy mechanical engineering
Construction and agricultural machinery
Rolling mills
Wind power plants

APPLICATION LIMITS

Pressure [Mpa]: max. .05
Peripheral speed [m/s]: max. 8
The values given here are maximum values and may not all be reached at the same time
NBR

Temperature [°C]: -40 to 80, short-term up to 100
Peripheral speed [m/s]: max. 6

FKM

Temperature [°C]: -25 to 150
Peripheral speed [m/s]: max. 34

MEDIA RESISTANCE
NBR

Good chemical resistance to various mineral oil and greases (H, HL, HLP)
Flame-retardant hydraulic fluids HFA and HFB, HFC up to appr. +50°C
Water up to max. +60°C
Low resistance to ozone, weathering and ageing

FKM

Good chemical resistance to mineral oils and greases, synthetic oils and greases, engine, gearbox and ATF oils up to approx. +150 °C
Fuels, flame-retardant pressure fluids HFD, aliphatic, aromatic and chlorinated hydrocarbons
Water up to max. +60°C
Very good resistance to ozone, weathering and ageing

DESIGN GUIDELINE

Stiffening ring non-alloy steel according to DIN EN 10139
Design of the installation space is recommended in accordance with DIN 3760
Roundness of shaft - tolerance class IT8 - free of twists, burrs and damage of any kind
Shaft surface roughness Rz = 1.0 to 4.0 ?m
Hardness of shaft surface min. 45 HRC
Housing surface roughness Rz = 10 to 20 ?m
Shaft tolerance zone: ISO h11
Housing tolerance zone: ISO H8

INSTALLATION GUIDELINE

Clean the installation space carefully before installation, remove dust, dirt, metal chips, etc
Do not pull the seal over sharp edges, threaded tips or cavities (feather key grooves) during installation, cover with a mounting sleeve if necessary
Do not grease the seal or installation space for assembly
Careful installation on the shaft, tilting is not permitted
