Catalog Number: T75005050

OEM Number: 15182TZ-H

Industry Part Number: 15182VB

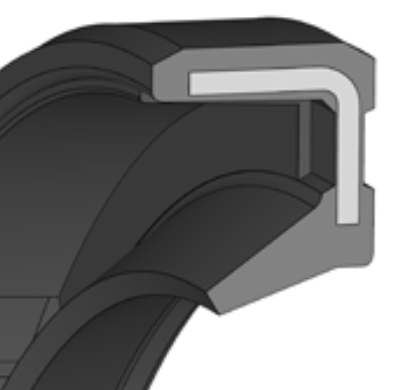

PRODUCT TYPE: Radial Shaft Seal

Seal Profile: WBS

Lip/Base Material: 70 Nitrile Black

Commodity Code: 8487900080

Country of Origin: Taiwan

PRODUCT SPECIFICATIONS

Series: WBS
Type: Double Lip
Inside Diameter: 1.5 Inch
Outside Diameter: 1.874 Inch
Width: 0.25 Inch
Material: 70 Nitrile Black

DESIGN SPECIFICATIONS

Without tension spring
Without protective lip
Open metallic outer jacket
Sealing material: NBR, FKM
Material stiffening plate: Unalloyed steel DIN EN
10139 (DIN 1624)
Spring material: Spring steel DIN EN 10270-1

FUNCTION

Dynamic sealing of rotating shafts, independent of direction of rotation
Good static seal between sealing lip and shaft at standstill
Metallic outer jacket ensures tight and precise fit
Limited sealing of low-viscosity and gaseous media and in split housings

PRODUCT ADVANTAGES

Protection against moderate to medium dust and dirt accumulation from outside
Tight and precise fit
Long service life
Reliable design with broad application spectrum for moderately demanding applications in general industry
Good price/performance ratio
Manufactured by certified external suppliers

COMMON APPLICATIONS

Sealing against grease
Subordinate seals, e.g. as dust, dirt or splash protection seals for electric motors

APPLICATION LIMITS

Pressure [Mpa]: max. .05
Peripheral speed [m/s]: max. 8
The values given here are maximum values and may not all be reached at the same time
NBR

Temperature [°C]: -40 to 80, short-term up to 100
Peripheral speed [m/s]: max. 6

FKM

Temperature [°C]: -25 to 150
Peripheral speed [m/s]: max. 34

MEDIA RESISTANCE
NBR

Good chemical resistance to various mineral oil and greases (H, HL, HLP)
Flame-retardant hydraulic fluids HFA and HFB, HFC up to appr. +50°C
Water up to max. +60°C
Low resistance to ozone, weathering and ageing

FKM

Good chemical resistance to mineral oils and greases, synthetic oils and greases, engine, gearbox and ATF oils up to approx. +150 °C
Fuels, flame-retardant pressure fluids HFD, aliphatic, aromatic and chlorinated hydrocarbons
Water up to max. +60°C
Very good resistance to ozone, weathering and ageing

DESIGN GUIDELINE

Stiffening ring non-alloy steel according to DIN EN 10139
Design of the installation space is recommended in accordance with DIN 3760
Roundness of shaft - tolerance class IT8 - free of twists, burrs and damage of any kind
Shaft surface roughness Rz = 1.0 to 4.0 ?m
Hardness of shaft surface min. 45 HRC
Housing surface roughness Rz = 10 to 20 ?m
Shaft tolerance zone: ISO h11
Housing tolerance zone: ISO H8

INSTALLATION GUIDELINE

Clean the installation space carefully before installation, remove dust, dirt, metal chips, etc
Do not pull the seal over sharp edges, threaded tips or cavities (feather key grooves) during installation, cover with a mounting sleeve if necessary
Do not grease the seal or installation space for assembly
Careful installation on the shaft, tilting is not permitted

In mechanical equipment, oil seals, also known as grease, fluid, or dirt seals, help keep lubricant from escaping by sealing the gaps between moving and stationary parts. Oil seals are essential parts of almost every kind of equipment and vehicle in use and have optional metric and inch shaft and bore sizes. To produce a tight seal, the sealing lipwhich is frequently composed of rubber or elastomerspresses up against the rotating shaft. Oil seals have optional single lip, double lip and triple lips. Depending on the temperature and chemical resistance requirements of the application, materials such as silicone rubber, nitrile rubber, or fluorocarbon are employed. Oil seals are relatively simple to install and replace, minimizing downtime for maintenance. Maxtran stocks both rubber covered and fully metal options for better structural support and to help secure the seal within the housing. Maxtran. com is the Worlds largest Authorized TCM oil seal distributor offering over 150,000 shaft and bore sizes and sealing lip configurations in various materials for every industrial and automitive application. Every single WBS Series Double Lip Timken 253099 Oil Seal includes free same-day shipping and concierge technical support. This 253099 oil seal is manufactured from 70 Nitrile Black material and has a 1. 5 Inch shaft diameter and 1. 874 Inch bore diameter and is 0. 25 Inch thick. With so many oil seal size options Maxtran is the #1 choice for buying shaft seals in the USA!
