PRODUCT DESCRIPTION
Portable Bearing Heater, 50/60Hz, 2A

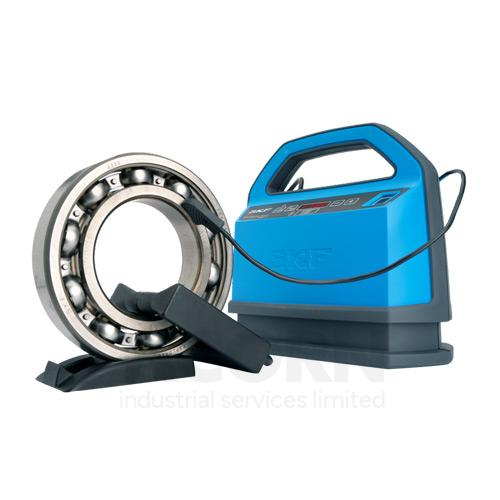

A small, light bearing heating solution. Roller bearings are heated and mounted onto a shaft with an interference fit using the TMBH 5 portable bearing heater. It is adaptable enough to be employed in a variety of settings, such as a manufacturing floor, a work bench, or a field. Typical uses include servicing and maintenance tasks for equipment including blowers, fans, pumps, and gearboxes.
The utilization of advanced medium-frequency technology is primarily responsible for the device's near-silent operation and light weight of under 3 kg. It has an internal coil-containing induction clamp. A changing magnetic field is produced by the coils' current. Heat is produced as a result of the component's induced currents. The technique is highly efficient because this heat is produced inside the component rather than the clamp.
The heater creates a temperature differential between the shaft and the bearing. As a result, the bearing expands, eliminating the requirement for force during installation. Other ring-shaped metallic parts can also be heated by it.

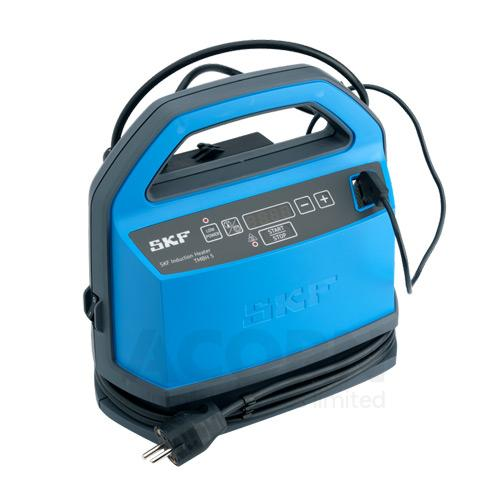

The user can choose between Temperature Mode and Time Mode thanks to the device's user-friendly UI. When the TMBH 5 is operating, an LED indicator appears because it doesn't create much noise.
PRODUCT HIGHLIGHTS
Time Control: 5 seconds - 60 minutes
Temperature Range: 40-200 °C (104-392 °F)
Power Supply: 50/60Hz
Maximum Power Consumption: 2A
Demagnetisation: The heater does not magnetise
Voltage and frequency: 230 V ±10%, 50/60Hz
Voltage Classification: V
Max. Bearing Weight (Kg): 5 Kg (11 lb)
Bore Diameter Range (mm): 20-100mm
Max. Bearing Width (mm): 50mm (2.0in)
Portable Bearing Heater, 50/60Hz, 2A
A small, light bearing heating solution. Roller bearings are heated and mounted onto a shaft with an interference fit using the TMBH 5 portable bearing heater. It is adaptable enough to be employed in a variety of settings, such as a manufacturing floor, a work bench, or a field. Typical uses include servicing and maintenance tasks for equipment including blowers, fans, pumps, and gearboxes.
The utilization of advanced medium-frequency technology is primarily responsible for the device's near-silent operation and light weight of under 3 kg. It has an internal coil-containing induction clamp. A changing magnetic field is produced by the coils' current. Heat is produced as a result of the component's induced currents. The technique is highly efficient because this heat is produced inside the component rather than the clamp.
The heater creates a temperature differential between the shaft and the bearing. As a result, the bearing expands, eliminating the requirement for force during installation. Other ring-shaped metallic parts can also be heated by it.
The user can choose between Temperature Mode and Time Mode thanks to the device's user-friendly UI. When the TMBH 5 is operating, an LED indicator appears because it doesn't create much noise.
PRODUCT HIGHLIGHTS
- Operates silently
- Lightweight, portable, and compact (3 kg)
- Uses cutting-edge medium-frequency technology
- It offers a variety of power settings
- Accessories fit into handy side compartments
- Eliminates the need to select a separate yoke for each component
- Has an intuitive control panel
- Can handle bearings up to 5 kg in weight
Time Control: 5 seconds - 60 minutes
Temperature Range: 40-200 °C (104-392 °F)
Power Supply: 50/60Hz
Maximum Power Consumption: 2A
Demagnetisation: The heater does not magnetise
Voltage and frequency: 230 V ±10%, 50/60Hz
Voltage Classification: V
Max. Bearing Weight (Kg): 5 Kg (11 lb)
Bore Diameter Range (mm): 20-100mm
Max. Bearing Width (mm): 50mm (2.0in)
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- SKF
- Type:
- Portable
- Series:
- 230V
