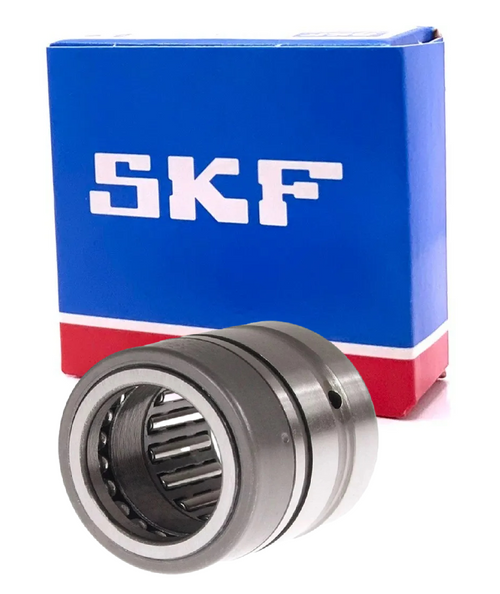

SKF NKXR25 Needle Roller Bearing Combination Roller & Cylindrical Thrust Roller, 25MM Bore

Manufacturer Part Number: NKXR 25

HS Code: 8482 40 00 00

FEATURES & BENEFITS

• Needle roller/axial deep groove ball bearings
• Can support axial forces in one direction as well as high radial forces
• Available with a full complement ball set or with a cage-guided rolling element set
• Do not have an inner ring
• Compact in a radial direction
• Require a shaft raceway that is hardened and ground
• Inner rings (IR) can be utilized in place of the shaft
• Type NKX is not self-retaining
• Type NKX..-Z is self-retaining

SKF Combined needle roller bearing NBX2030 stocked at Maxtran are Designed to manage both axial and radial stresses, combined needle roller bearings are multipurpose bearing components. NKXR Series Combination Roller & Cylindrical Thrust Roller Needle Roller Bearing are a premium needle bearing manufactured by SKF to sustain complicated loading situations, they integrate an axial component, like a thrust bearing or a thrust collar, with a radial needle roller bearing. Mounted onto shafts or in recessed cavities by their machined 25MM shaft bore diameter and 37MM circumference outside diameter these bearings are especially well-suited for situations where other configurations would need excessive space or where the working circumstances of the application do not allow for this. SKF NKXR type Combinations of these needle bearings include axial cylindrical roller combinations, thrust ball bearings, angular contact ball bearings and axial ball bearings. Common uses for combined needle roller bearings include steering columns, power tools, industrial machinery, mechanical pumps, marine applications, automatic and manual transmissions, and power transmissions. For all your SKF NKXR25 Combination Roller & Cylindrical Thrust Roller Needle Roller Bearings needs shop Maxtran where we stock over 15,000 sizes and types of Needle Roller Bearings from the top brands in the world at everyday sales prices!
