Catalog Number: T-75183648

OEM Number: 8600-0250N2

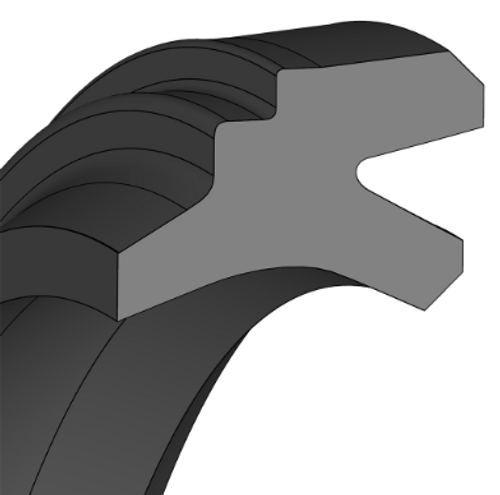

PRODUCT TYPE: SIngle Wiper

Seal Profile: AM45

Lip/Base Material: 85 Nitrile

PRODUCT SPECIFICATIONS

Series: AM45
Inside Diameter: 2.5 Inch
Outside Diameter: 3 Inch
Material: 85 Nitrile

DESIGN SPECIFICATIONS

Single acting
Protruding wiper lip
Vulcanized metal angle ring
Sealing material: NBR
Reinforcement material: Unalloyed steel DIN EN 10139 (DIN 1624)
Material: NBR, FKM, TPU

FUNCTION

Wiping off impurities on the piston rod during the retraction movement
Reduction of residual oil film due to second lip<
Metal angle ring ensures good fit in the installation space and prevents twisting

PRODUCT ADVANTAGES

Higher sealing effect on the outer diameter due to encasing of the stiffening ring
Good wiping properties against dirt
No pressure relief hole required
Metal stiffening ring ensures functional fit in the installation space
Particularly suitable for high stroke speeds
Metal angle ring offers only a small attack surface for corrosive media
Reliable design with broad application spectrum for moderately demanding applications in general industry
Good price/performance ratio
Manufactured by certified external suppliers

COMMON APPLICATIONS

Hydraulics

APPLICATION LIMITS
The values given here are maximum values and may not all be reached at the same time
TPU

Temperature [°C]: -30 to 100
Gliding speed [m/s]: max. 1

MEDIA RESISTANCE
TPU

Hydraulic oils according to DIN 51524 part 1-3
Lubricating oils
Lubricating greases based on minor oils
Flame-retardant hydraulic fluids HFA, HFB, HFC according to VCMA 24317

STORAGE ADVISE

Storage temperature <25°C
No direct heat sources
No direct sunlight
No condensation in the storage room
No exposure to ozone or ionizing radiation
Recommendations based on the revision of ISO 2230 dated 16.09.1992

Wipers are wear-resistant, long-lasting and keep dust and dirt particles from entering housings. They shield the hydraulic fluid from contaminants in addition to preventing harm to the sealing system. Double-acting wipers also leave behind an extra layer of leftover oil. For high exterior pollution, wipers with metal housings are especially well-suited because of their press-fit design. Numerous wipers that are compatible with a wide range of hydraulic cylinders are available under the TCM product brand. Maxtran. com is the trusted authorized source for TCM Hydraulic Seals Easily shop the largest inventory of TCM AM45 Single Wiper Hydraulic Seals you need at the best deals with free shipping and our 30-day moneyback warranty. Our Single Wiper Seals measure 2. 5 Inch inside shaft diameter by 3 Inch outside bore diameter and are produced from 85 Nitrile rubber that have excellent resistance to hydraulic fluids, oils, lubricants, and greases
