Manufacturer Part Number: 596/592A
Bore Designation UOM: Imperial (Inch)
SET CONTAINS
Bore Designation UOM: Imperial (Inch)
SET CONTAINS
- Single Cone 596
- Single Cup 592A
- ABMA Class 2
- Standard tolerances
- Designed to manage both thrust and radial loads on rotating shafts and in housings
- Engineered to provide the durability
- Utilizing conical rollers and raceways arranged so that the rollers and raceways meet at a common apex
- Both rings should be replaced at the same time to maximize reliability and life
- Axial load carrying capacity of tapered roller bearings increases with increasing contact angle
- No lubrication hole

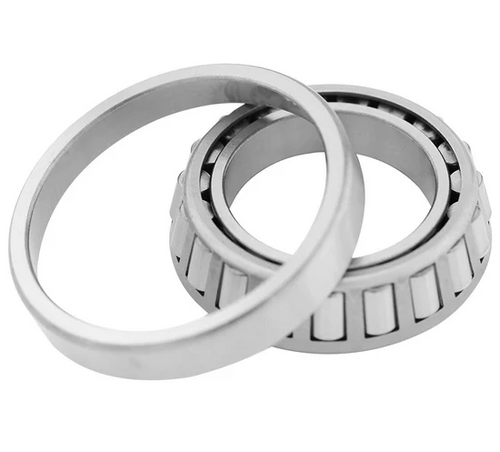

- Consists of (2) separable parts: the inner race assembly (cone) and the outer race (cup)
- Typically mounted in opposing pairs on a shaft
- Available in single, double and multi-row configurations
- Allows for heavier loads and can help extend bearing life
- Enhanced internal geometry allows lower torque and operating temperatures
- Gearing Systems and Transmissions
- Thermal Power Coal Transporters
- Port Equipment
- Rubber Applications
- Machine Tool Spindles
- Gear Reducer
- Automotive Drive Axle
- Aircraft wheels
- Agricultural Wheels
- Tensioning Rollers
- Raking Machinery
- Mining Equipment
- Railroad Axle-Boxes
- Vehicle front wheels
- Differential and pinion configurations
- Conveyor rolls
- Trailer wheels
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Configuration:
- [1] Cup, [1] Cone
- Inside Diameter:
- 85.73MM (3.375")
- Manufacturer:
- QJZ
- Series:
- 596-592A
