Manufacturer Part Number: XPB2650

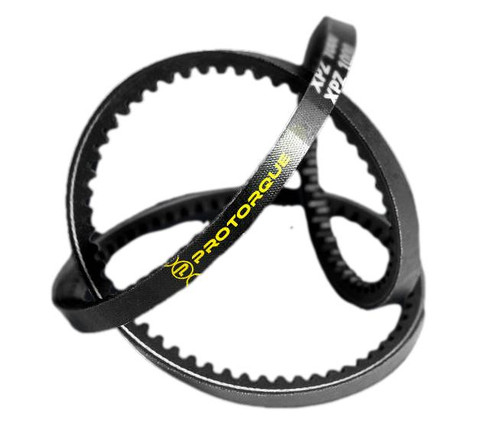

Belt Style: Cogged High Power Wedge Belt
Increased power capacity is provided by raw edge, moulded cogged narrow wedge belts, which can result in fewer belts being needed and potentially large cost savings. appropriate for a vast array of industrial uses. Replace traditional V belts with high power wedge belts to transmit the same power with fewer belts or to increase belt life. V-belt pulleys are recommended for use with Protorque® raw edge moulded cogged wedge belts in accordance with DIN 2217 / DIN 2211 or ISO 4183.
PRODUCT HIGHLIGHTS
Belt Style: Cogged High Power Wedge Belt
Increased power capacity is provided by raw edge, moulded cogged narrow wedge belts, which can result in fewer belts being needed and potentially large cost savings. appropriate for a vast array of industrial uses. Replace traditional V belts with high power wedge belts to transmit the same power with fewer belts or to increase belt life. V-belt pulleys are recommended for use with Protorque® raw edge moulded cogged wedge belts in accordance with DIN 2217 / DIN 2211 or ISO 4183.
PRODUCT HIGHLIGHTS
- Ideal where space and weight are limited
- Deeper cogged profile
- Specially treated low stretch polyester tension cords
- EPDM Teeth
- Able to transmit higher power compared to Classical V-Belts
- Higher dynamic load capacity
- Increased flexibility
- EPDM allows for higher tensions and and increased power transmission capability
- Longer lasting performance as compared to Wrapped V-Belts
- Deep cogged cushion provides increased support for tension cords
- Used in heavy duty drives which require the highest capacities while saving space.
- Heavy-duty, multi-layered industrial backing cloth maintains and shields the belt's tension cords, enabling the belts to reach maximum flexibility.
- Tension cords made of low stretch polyester that has undergone special treatment may withstand shock loads and flex fatigue while offering increased dynamic load performance.
- Greater support for tension cords, enabling higher tensions and hence greater power transmission capabilities, is provided by a deeper profile cogged cushion.
- Promotes higher power over classical v belts
- As per ISO specifications
- -40°C TO +70°C
- Excellent resistance to dust, abrasion and wear
- Great resistance to ozone and sunlight
- Fully Resistant to mineral oil
- Meets ISO 1813 antistatic requirements
- Higher coefficient of friction
- Meets RoHS and REACH requirements
- DIN 2215 ISO 4184 / IP20 RMA-ANSI / BS 3790
- XPB2650 Gates® Metric Power
- XPB2650 D&D Powerdrive Dura-Extreme Metric
- XPB2650 XPB2650 PIX X'tra®
- XPB2650 Optibelt SUPERXE-POWER PRO
- XPB2650 Mitsuboshi TRIPLEX
- XPB2650 Diesel
- XPB2650 Goodyear CONTI®V
- XPB2650 Contitech CONTI®V
- XPB2650 A&I Products
- XPB2650 Bando Metric
- XPB2650 Dayton
- XPB2650 Dayco Gold Label® X
- XPB2650 Jason Linea-X®
- XPB2650 Bestorq
- XPB2650 Fenner Ultra PLUS
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- Protorque®
- Series:
- XPB
- Width:
- 17MM
- Length:
- 2650MM
- Material:
- Polyester Cord EPDM
