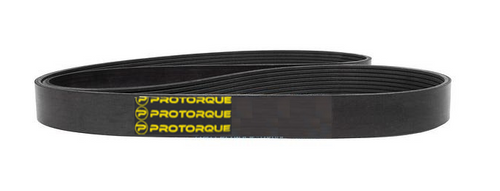

Protorque® Part Number: 3PJ457 / 180J3
Belt Style: Poly-Vee Belt
Number of Ribs: 3
PRODUCT HIGHLIGHTS
Belt Style: Poly-Vee Belt
Number of Ribs: 3
PRODUCT HIGHLIGHTS
- Ultra-thin flat belt
- Top layer is fabric-reinforced
- Resists reverse bending and possible wear caused by back idler
- Specially treated high-strength tensile members
- Good resistance to mineral oils
- Operates in temperatures from -30°C to +60°C(+80°C for short periods)
- Suitable for environments of high humidityL
- Can withstand the stresses with reduced and stable elongation
- Compact smooth running drive system with low vibration
- Meet ISO standard 1813 for static conductivity
- Extremely flexible belt with the versatility to handle heavy, high-speed industrial applications
- Able to utilize very small sheaves
- Allows for speed ratios up to 4 to 1
- Smooth, vibration-free performance
- Ideally suited for consumer goods applications like clothes dryers
- Can be used in serpentine drive configurations with small backside idlers
- Engineered for a compact design
- Improve performance on 1/8 turn, 1/4 turn, and mule drives
- Allows high-speed operation up to 50m/s
- High rotation accuracy
- High transmission efficiency (little power loss)
- Advantageous in tension retention and maintenance
- Conveyors and handling systems
- Fitness sport & leasure equipment
- Industrial engines
- Power tools
- Military vehicles
- Agricultural and gardening equipment
- Massage chairs
- Appliances
- Laundry machines
- Robotic equipment
- Ametric 180J3
- A&I Products 180J3
- Bando Rib Ace® 180J3
- Continental POLY-V® 180J3
- D&D Powerdrive Dura-Prime Rib Pro 180J3
- Fenner Eagle® Poly-V 180J3
- Gates Micro-V® 180J3
- Goodyear POLY-V® 180J3
- Hutchinson 180J3
- Mitsuboshi RIBSTAR® 180J3
- Optibelt RB 180J3
- PIX-Xceed® 180J3
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- Protorque®
- Length:
- 18 Inch
- Number of Ribs:
- 3
- Pitch:
- .092 Inch
- Material:
- Polyester Cord Polybutadiene
- Width:
- 0.28 Inch
