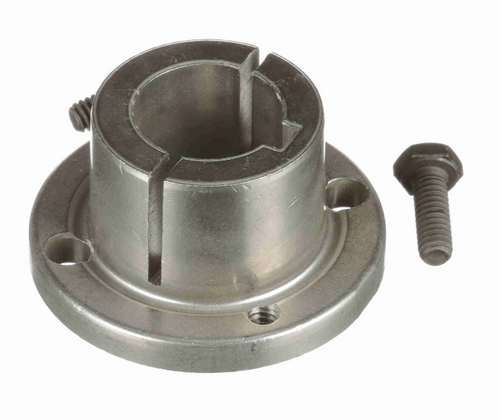

Torquex® Part Number: P1X15MM
Product Type: DST Double Split-Taper
PROUDLY MADE IN THE USA!
All Pulley Bushings include mounting hardware
PRODUCT HIGHLIGHTS
QD®: JA, SH, SDS, SD, SK, SF, E, F, J, M, N, P, W, S
TL®: 1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2517, 2525, 3020, 3030, 3525, 3535, 4030, 4040, 4535, 4545, 5040, 5050, 6050, 7060
DST: G, H, P1, P2, P3, Q1, Q2, Q3, R1, R2, S1, S2, U0, U1, U2, W1, W2
STOCK BORE RANGE
QD®: 3/8" thru 10"
TL®: 1/2" thru 12"
DST: 3/8" thru 7-7/16"
NOTE: Bushing styles are not interchangeable (Example: QD must be used with QD products, TL must be used with TL products, etc.) but each type is interchangeable with the same type made by other manufacturers.
CALIFORNIA PROPOSITION WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.p65warnings.ca.gov
Maxtran.com has the Torquex® P1X15MM drive belt pulley bushings you need when you need them. We have the the most complete offering of P1 Style Double Split-Taper Bushings in the power transmission industry. Our massive nationwide stock of DST® bushings are easy to install and removeable with minimal machine downtime. The double split barrel provides positive clamping to the shaft via a 15MM bore and is locked by an internal and external key (most sizes) for greater torque carrying capabilities and to assist during blind installations. They mount to adjacent surfaces with supplied cap screws through the 3.000 Inch diameter solid flange that secures the concentric bore while reducing vibration in the drive. All P1 Pulley Bushings are produced from high strength Ductile Iron to handle heavy duty equipment like Fans & Blowers, Ventilation Units, Agricultural blower units, Pumps and Conveyors Mixers in the HVAC, Mining, Bulk Material Handling and Package Material Handling industries.
Product Type: DST Double Split-Taper
PROUDLY MADE IN THE USA!
All Pulley Bushings include mounting hardware
PRODUCT HIGHLIGHTS
- Double split barrel ensures concentricity
- Grips the shaft with positive clamp fit
- High torque carrying capacity
- Permits blind assembly
- Load not carried or limited by mounting screwsSolid Flange & Double Split Barrel
- Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4" per Foot Taper on Barrel
- Self locking taper provides the highest degree of mechanical locking product to product
- TB WOODS: P115MM
- BROWNING: P1-15MM
- DODGE: P1X15MM
- MARTIN: P1-15MM
- MASTERDRIVE: P1-15MM
- POWERDRIVE: P1 15MM
- TRITAN: P1 X 15MM
QD®: JA, SH, SDS, SD, SK, SF, E, F, J, M, N, P, W, S
TL®: 1008, 1108, 1210, 1215, 1310, 1610, 1615, 2012, 2517, 2525, 3020, 3030, 3525, 3535, 4030, 4040, 4535, 4545, 5040, 5050, 6050, 7060
DST: G, H, P1, P2, P3, Q1, Q2, Q3, R1, R2, S1, S2, U0, U1, U2, W1, W2
STOCK BORE RANGE
QD®: 3/8" thru 10"
TL®: 1/2" thru 12"
DST: 3/8" thru 7-7/16"
NOTE: Bushing styles are not interchangeable (Example: QD must be used with QD products, TL must be used with TL products, etc.) but each type is interchangeable with the same type made by other manufacturers.
CALIFORNIA PROPOSITION WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.p65warnings.ca.gov
Maxtran.com has the Torquex® P1X15MM drive belt pulley bushings you need when you need them. We have the the most complete offering of P1 Style Double Split-Taper Bushings in the power transmission industry. Our massive nationwide stock of DST® bushings are easy to install and removeable with minimal machine downtime. The double split barrel provides positive clamping to the shaft via a 15MM bore and is locked by an internal and external key (most sizes) for greater torque carrying capabilities and to assist during blind installations. They mount to adjacent surfaces with supplied cap screws through the 3.000 Inch diameter solid flange that secures the concentric bore while reducing vibration in the drive. All P1 Pulley Bushings are produced from high strength Ductile Iron to handle heavy duty equipment like Fans & Blowers, Ventilation Units, Agricultural blower units, Pumps and Conveyors Mixers in the HVAC, Mining, Bulk Material Handling and Package Material Handling industries.
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- Torquex®
- Material:
- Ductile Iron
- Series:
- P1
- Outside Diameter:
- 3.000 Inch
- Inside Diameter:
- 15MM
