THIS PRODUCT IS ONLY A HOUSING-INSERT BALL BEARINGS ARE SOLD SEPERATELY

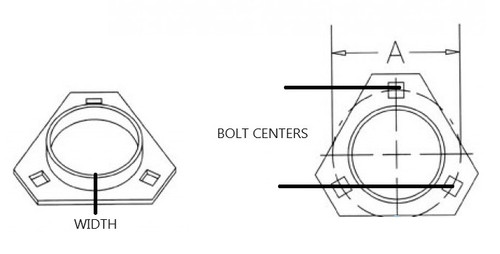

Tritan Part Number: PFT207
PRODUCT TYPE: Triangle Flangette Housings
BEARING ASSEMBLY INTERCHANGEABILITY: Light Duty Mounted Bearing Units
Used in Bearing Assembly
Shaft Size: 1-1/2" and Over Grease Fitting Thread: 1/8 - 27 NPT
PRODUCT HIGHLIGHTS
Tritan Part Number: PFT207
PRODUCT TYPE: Triangle Flangette Housings
BEARING ASSEMBLY INTERCHANGEABILITY: Light Duty Mounted Bearing Units
Used in Bearing Assembly
- SAPFT207-20
- SAPFT207-21
- SAPFT207-22
- SAPFT207-23
- SAPFT207-35MM
- SBPFT207-20
- SBPFT207-21
- SBPFT207-22
- SBPFT207-23
- SBPFT207-35MM
- SA207-20
- SA207-21
- SA207-22
- SA207-23
- SA207-35MM
- SB207-20
- SB207-21
- SB207-22
- SB207-23
- SB207-35MM
Shaft Size: 1-1/2" and Over Grease Fitting Thread: 1/8 - 27 NPT
PRODUCT HIGHLIGHTS
- Designed to operate at full rating at temperatures of 40°F to 250°F
- One-Piece Solid Base
- Misalignment of ±2° for bearings size 211 and smaller, and ±1.5° for larger sizes
- Sphered outer rings that self-align within the housing to compesate for misalignments
- Compact in design with sealing devices that ensure long-lasting performance
- Mounted units are most commonly constructed of high- quality grey cast iron
- Dual and Triple Seals Available
- All housings can be re-lubricated through the grease fitting installed into the housing
- Outer housing grease hole mates up with the bearing insert groove
- Cast Iron: One-piece cast-iron housings provide solid construction and maximum wear resistance
- Ductile Iron: One piece ductile or malleable iron housings are made to the same exacting standards as cast-iron housings but provide higher tensile strength
- Stamped Steel: Offers a wide variety of zinc plated stamped steel pillow block and flanges housings of arious thicknesses for light load applications
- Thermoplastic: Thermoplastic polymer housings are made of FDA recognized material and incorporate solid bases and stainless-steel bolt inserts and grease fitting
- Stainless Steel: Stainless steel housings are made of series 304 stainless steel and incorporate series 300 stainless steel grease fittings and ideally suited for food and chemical applications
- Industrial machinery
- Conveyors
- Fans/blowers
- Agricultural equipment
- Construction machinery
- Exercise equipment
- Food processing equipment
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- Tritan
- Material:
- Zinc Plated Steel
- Type:
- 3-Bolt Triangle Flange
- Series:
- PFT
- Length:
- 3-15/16 Bolt Centers
- Width:
- 7/32 Inch
