KOYO Part Number: NF317MC3
Single row cylindrical roller bearing
PRODUCT HIGHLIGHTS
Single row cylindrical roller bearing
PRODUCT HIGHLIGHTS
- Internal cylindrical rollers in linear contact with the raceways
- Offer high load capacity under primarily radial loads
- Low friction between the rollers
- Ring ribs makes these bearings suited for high speed rotation
- High radial rigidity
- Used primarily for the main shafts of precision machine tools
- Cages are typically made of pressed steel, machined brass or molded polyamide resin

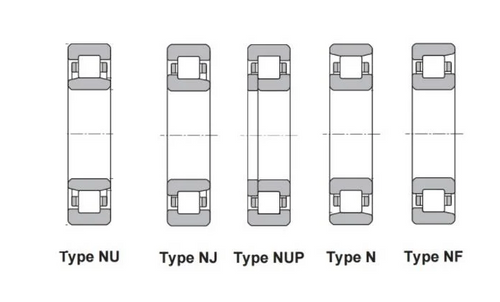

- TYPES OF CYLINDRICAL ROLLER BEARINGS
- NU, N, NNU, NN Suitable as free-end bearings
- NJ, NF Can sustain limited axial loads in one direction
- NH, NUP Suitable as fixed-end bearings
- NH types are comprised of a NJ-type CRB with a HJ-type L-shaped thrust collar
- NU
- NJ
- NUP
- N
- NF
- NNU
- NN
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Manufacturer:
- KOYO
- Series:
- NF
- Configuration:
- Separable Outer Ring-Flange One Side
- Type:
- Single Row
- Material:
- Brass Cage
- Inside Diameter:
- 85MM
- Outside Diameter:
- 180MM
- Width:
- 41MM
