Catalog Number: T-75065855
OEM Number: DC 1/4OS
PRODUCT TYPE: Hygienic USIT® Seal

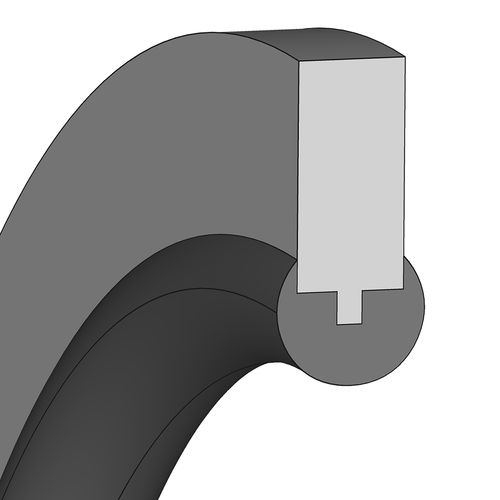

Seal Profile: USZO
Lip/Base Material: 70 Nitrile
PRODUCT SPECIFICATIONS
Fastener seals are suitable for pressures up to max. 25 MPa without countersinking in the mating surfaces. Higher pressures possible with countersink, depending on application parameters
The values given here are maximum values and may not all be reached at the same time
NBR
NBR
OEM Number: DC 1/4OS
PRODUCT TYPE: Hygienic USIT® Seal
Seal Profile: USZO
Lip/Base Material: 70 Nitrile
PRODUCT SPECIFICATIONS
- Series: USZO
- Inside Diameter: 0.245 Inch
- Outside Diameter: 0.531 Inch
- Material: 70 Nitrile
- Round lip design
- Flat surface
- Surface roughness Rmax ? 15 ?m
- Surface roughness Ra = 3,2 ?m
- Elastomer sealing lip vulcanized on the inside
- Sealing material: NBR, FKM
- Material metal ring: Standard steel SAE 1008 (1.0330), zinc chromated (CR VI free) / stainless and acid-resistant steel AISI 304 (1.4301)
- Protection against dirt from outside, prevents media leakage, no pressure loss
- Sealing effect due to compression of the elastomer lip
- Very good sealing effect
- Metal washer ensures controlled pressing
- Simple assembly
- Reliable design with broad application spectrum for moderately demanding applications in general industry
- Good price/performance ratio
- Manufactured by certified external suppliers
- Static sealing for screw connections and flange seals (mechanical engineering, tank and apparatus construction)
Fastener seals are suitable for pressures up to max. 25 MPa without countersinking in the mating surfaces. Higher pressures possible with countersink, depending on application parameters
The values given here are maximum values and may not all be reached at the same time
NBR
- Temperature [°C]: -30 to 100
- Temperature [°C]: -20 to 200
NBR
- Good chemical resistance to various mineral oils and greases (H, HL, HLP)
- Flame-retardant hydraulic fluids HFA and HFB, HFC up to appr. +50°C
- Water up to max. +60°C
- Good chemical resistance to mineral oils and greases, synthetic oils and greases, engine, gearbox and ATF oils up to approx. +150 °C
- Fuels, flame-retardant pressure fluids HFD, aliphatic, aromatic and chlorinated hydrocarbons
- Water up to max. +60°
- Very good resistance to ozone, weathering and ageing
- Storage temperature <25°C
- No direct heat sources
- No direct sunlight
- No condensation in the storage room
- No exposure to ozone or ionizing radiation
- Recommendations based on the revision of ISO 2230 dated 16.09.1992
MAXTRAN® offers a 30-Day, 100% Quality Guarantee Against Material and Manufacturing Defects Only, No Exceptions. All Claims must be made within 72-Hours of receiving your parts. MAXTRAN® is not responsible for Shipping Carrier damage or lost shipments. It is the customers responsibility to file a claim with the shipping carrier. No additIonal or implied warranties for this product are offered by MAXTRAN®. An RGA is required for all returns. We do not offer refunds without a replacement order of equal or greater value from the original order. If products are out-of-stock when a replacement is needed a store credit will be issued. Returns are only allowed for manufacturing defects and product damage. A 30% Restock Fee will be charged for all approved returns unless the product is dispositioned to be defective by our Quality Manager . All Shipping is non-refundable and any return shipping to our warehouse is the customers responsibility.
- Series:
- USZO
- Inside Diameter:
- 0.245 Inch
- Outside Diameter:
- 0.531 Inch
- Material:
- 70 Nitrile
