Name: Tritan HX15/16 Pulley Bushing - QD Style
Brand: Tritan
SKU: MXT593065
Price: 12.48 USD
Availability: InStock

Tritan HX15/16 Pulley Bushing - QD Style

OUR PRICE $12.48

RETAIL $29.94

COMPETITOR $14.26

(You save $17.46 )

maxtran membership, big savings, best deals on industrial parts, wholesale discounts on bearings

In Stock

Product Details
Shipping & Returns
Product Specifications

Tritan Part Number: HX15/16

All Pulley Bushings include mounting hardware

Bore Range: 15/16" thru 3"

PRODUCT HIGHLIGHTS

DST-Double Split Tapered type of bushing

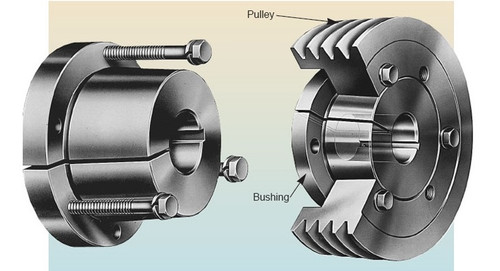

Similiar to a QD bushing with a double split through the flange
Used in low-profile, high-power applications
Tapered to compress evenly through the length of the bushing
Strengthens the mounting of the pulley or sprocket onto the drive shaf
tGrips the shaft with pressure equivalent to a shrink or press fit
Designed with a set screw over the keyway to help maintain the bushing's position on the shaft
Cap screws are included for both installation and bushing removal
Must be paired with a bushed-bore pulley or sprocket of the same bore bushing series

Maxtran.com has the Tritan HX15/16 drive belt pulley bushings you need when you need them. We have the the most complete offering of H Style Double Split-Taper Bushings in the power transmission industry. Our massive nationwide stock of DST® bushings are easy to install and removeable with minimal machine downtime. The double split barrel provides positive clamping to the shaft via a 15/16 Inch bore and is locked by an internal and external key (most sizes) for greater torque carrying capabilities and to assist during blind installations. They mount to adjacent surfaces with supplied cap screws through the 2.500 Inch diameter solid flange that secures the concentric bore while reducing vibration in the drive. All H Pulley Bushings are produced from high strength Ductile Iron to handle heavy duty equipment like Fans & Blowers, Ventilation Units, Agricultural blower units, Pumps and Conveyors Mixers in the HVAC, Mining, Bulk Material Handling and Package Material Handling industries.
