Catalog Number: T-67187490

OEM Number: PR-30F80

PRODUCT TYPE: Flange seal

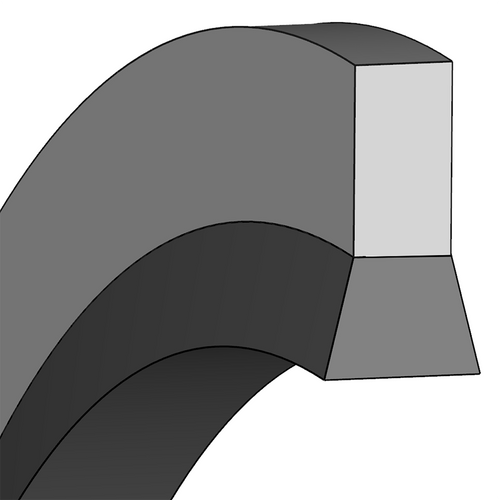

Seal Profile: PRR

Lip/Base Material: 80 Viton

PRODUCT SPECIFICATIONS

Series: PRR
Inside Diameter: 1.091 Inch
Outside Diameter: 1.287 Inch
Material: 80 Viton

DESIGN SPECIFICATIONS

Rubberized outer jacket
Sealing material: NBR, FKM
Material stiffening plate: Unalloyed steel DIN EN 10139 (DIN 1624)

FUNCTION

Static sealing of bores in housings, e.g. shaft bushings in gearbox housings
Sealing effect due to interference fit
Partially rubberized outer diameter ensures tight fit and seal between outer jacket and housing bore
Self-retaining

PRODUCT ADVANTAGES

Good static sealing effect with low-viscosity or gaseous media
Good static sealing effect due to smooth outer jacket
Compensates for thermal expansion, e.g. in light metal housings, good sealing effect with greater roughness and with split housings
Reliable design with broad application spectrum for moderately demanding applications in general industry
Good price/performance ratio
Manufactured by certified external suppliers

COMMON APPLICATIONS

Gearboxes
Bearing pedestal seal

APPLICATION LIMITS
At higher pressures, the end cap should be secured, e.g. with a retainer ring
Pressure [Mpa]: max. 0,05
The values given here are maximum values and may not all be reached at the same time
NBR

Temperature [°C]: -40 to 80, short-term up to 100
Gliding speed [m/s]: max. 1

FKM

Temperature [°C]: -25 to 150

MEDIA RESISTANCE
NBR

Good chemical resistance to various mineral oils and greases (H, HL, HLP)<
Flame-retardant hydraulic fluids HFA and HFB, HFC up to appr. +50°C
Water up to max. +60°CLow resistance to ozone, weathering and ageing

FKM

Good chemical resistance to mineral oils and greases, synthetic oils and greases, engine, gearbox and ATF oils up to approx. +150 °C
Fuels, flame-retardant pressure fluids HFD, aliphatic, aromatic and chlorinated hydrocarbons
Water up to max. +60°C
Very good resistance to ozone, weathering and ageing

STORAGE ADVISE

Storage temperature <25°C
No direct heat sources
No direct sunlight
No condensation in the storage room
No exposure to ozone or ionizing radiation
Recommendations based on the revision of ISO 2230 dated 16.09.1992

TCM's static flange seals have an increased pressure range of up to 60 MPa and are simple to install. They are useful at comparatively high degrees of surface roughness and have excellent functional reliability. O-rings and four-edge rings can be used in place of TCM flange seals, which provide strong resistance to abrasion and extrusion for a longer lifespan. Since 2002 Maxtran. com has been a premier authorized source of TCM PRR Series Flange Seals at the lowest everyday sales prices online. We have the worlds largest inventory of the Flange Seals you need in-stock and ready-to-ship with free shipping and world class technical support at your fingertips. Our TCM Flange Seals have a shaft diameter(inside diameter) of 1. 091 Inch and a bore diameter (outside diameter) of 1. 287 Inch. Flange seals are manufactured from 80 Viton which offers long service life making it suitable for many industrial applications within -30 to +100 °C (Nitrile) and -20 to +200 °C (Viton). Maxtran. com makes it effortless to find PRR Flange Seals in every shaft and bore size combination.
