Catalog Number: T-67058929

OEM Number: 230X14EC

PRODUCT TYPE: End Caps

Seal Profile: VER27

Lip/Base Material: 70 Nitrile

PRODUCT SPECIFICATIONS

Series: VER27
Inside Diameter: 9.055 Inch
Outside Diameter: 0.551 Inch
Material: 70 Nitrile

DESIGN SPECIFICATIONS

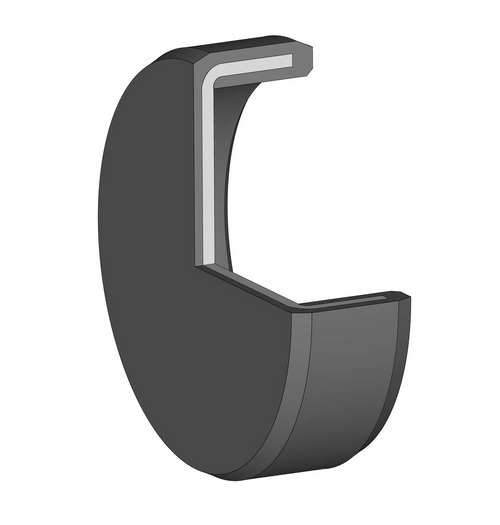

Rubberized outer jacket
Sealing material: NBR, FKM
Material stiffening plate: Unalloyed steel DIN EN 10139 (DIN 1624)

FUNCTION

Static sealing of bores in housings, e.g. shaft bushings in gearbox housings
Sealing effect due to interference fit
Partially rubberized outer diameter ensures tight fit and seal between outer jacket and housing bore
Self-retaining

PRODUCT ADVANTAGES

Good static sealing effect with low-viscosity or gaseous media
Good static sealing effect due to smooth outer jacket
Compensates for thermal expansion, e.g. in light metal housings, good sealing effect with greater roughness and with split housings
Reliable design with broad application spectrum for moderately demanding applications in general industry
Good price/performance ratio
Manufactured by certified external suppliers

COMMON APPLICATIONS

Gearboxes
Bearing pedestal seal

APPLICATION LIMITS
At higher pressures, the end cap should be secured, e.g. with a retainer ring
Pressure [Mpa]: max. 0,05
The values given here are maximum values and may not all be reached at the same time
NBR

Temperature [°C]: -40 to 80, short-term up to 100
Gliding speed [m/s]: max. 1

FKM

Temperature [°C]: -25 to 150

MEDIA RESISTANCE
NBR

Good chemical resistance to various mineral oils and greases (H, HL, HLP)<
Flame-retardant hydraulic fluids HFA and HFB, HFC up to appr. +50°C
Water up to max. +60°CLow resistance to ozone, weathering and ageing

FKM

Good chemical resistance to mineral oils and greases, synthetic oils and greases, engine, gearbox and ATF oils up to approx. +150 °C
Fuels, flame-retardant pressure fluids HFD, aliphatic, aromatic and chlorinated hydrocarbons
Water up to max. +60°C
Very good resistance to ozone, weathering and ageing

STORAGE ADVISE

Storage temperature <25°C
No direct heat sources
No direct sunlight
No condensation in the storage room
No exposure to ozone or ionizing radiation
Recommendations based on the revision of ISO 2230 dated 16.09.1992

TCM's end caps use axial press-fit installation to dependably seal mounting bores in housings statically. These are available in three versions VER01, which has an elastomer outer surface, VER02, which has a semi-shoulder design, and VER03, which has a grooved elastomer outside surface. For 25 years Maxtran. com has been the leading authorized supplier of TCM VER27 Series End Caps at the lowest everyday sales prices online. We have the worlds largest inventory of the End Caps you need in-stock and ready-to-ship with free shipping and world class technical support just a click away. Our TCM End Caps have a shaft diameter(inside diameter) of 9. 055 Inch and a bore diameter (outside diameter) of 0. 551 Inch. End caps are manufactured from 70 Nitrile which offers long service life making it suitable for many industrial applications within -30 to +100 °C (Nitrile) and -20 to +200 °C (Viton). Maxtran. com makes it effortless to find VER27 End Caps in every shaft and bore size combination.
